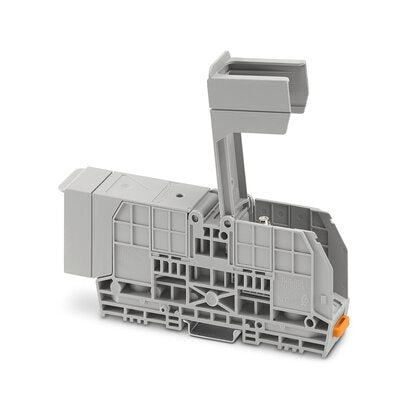

RBO 8-HC Terminal 70mm Bolt connect Grey
Phoenix

RBO 8-HC Terminal 70mm Bolt connect Grey

Ideal part number PHX3247973 Manufacturer number 3247973 Barcode 4046356725071
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

RBO 8-HC Terminal Block 6.0mm2 - 70mm2 Bolt Connection Grey

Bolt connection feed through terminal block,rated to 1500 Volt and 192 Amp.

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
1500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Bolt connection
Type of electrical connection 2
Bolt connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
yes
Material insulation body
Other
Rated current In
192 A
Explosion-tested version 'Ex e'
yes
Suitable for conductor material
Aluminium/copper
Country of Origin
China
