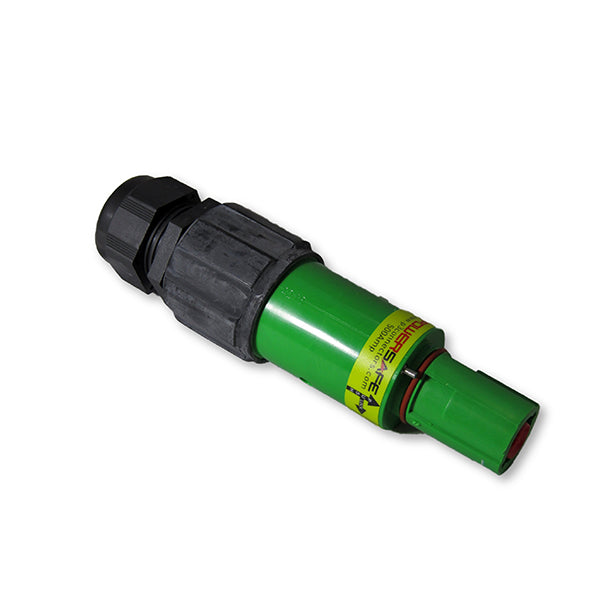

Cable MT Line Drain Connector 500A Male IP67 Green
Powerlock

Cable MT Line Drain Connector 500A Male IP67 Green

Ideal part number PWKPLLDGN Manufacturer number PLLDGN Barcode 9416024121590
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Suitable for use for temporary power connections in the entertainment industry and industrial sites, Cables to 150mm²

Super high impact flame retardant thermoplastic insulators. Each connector type colour coded and individually keyed to eliminate the possibility of accidental cross mating. Secondary locking pin to prevent unintentional uncoupling through cable torsion or inquisitive hands. Multipoint contact with 23 spring loaded active elements to allow low insertion force and minimal power loss with insulation resistance > 5 ohms @ 500 V DC.

Technical specifications

Colour
Green
Ingress Protection
IP67 (Ip: IP67)
Rated voltage
2kV AC / 3kV DC
Male / Femaie
Male
Material
Thermoplastic
Minimum operating temperature
-30°C
Maximum operating temperature
125°C
