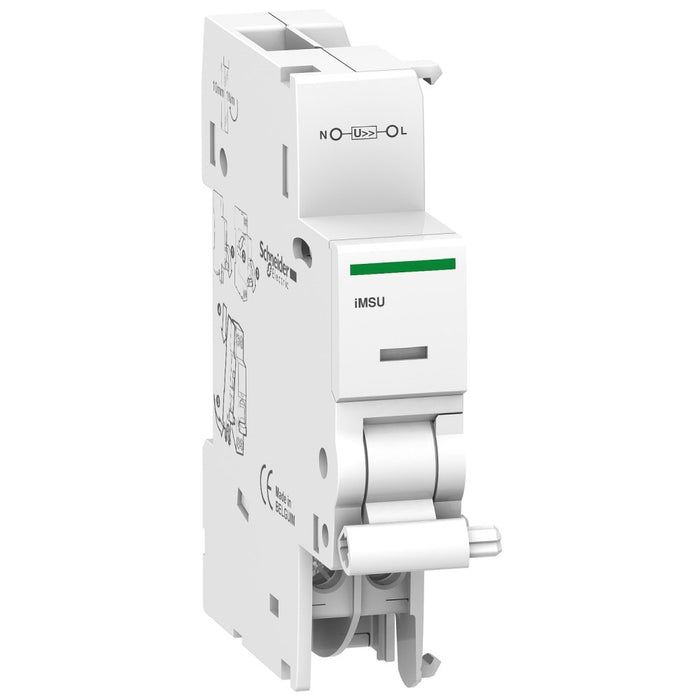

Acti9 Overvoltage Release iMSU Voltage Release 230VAC
Schneider Electric

Acti9 Overvoltage Release iMSU Voltage Release 230VAC

Ideal part number SCHA9A26500 Manufacturer number A9A26500 Barcode 3606480512490
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

overvoltage release Acti9 iMSU voltage release 230 V AC

This Acti9 iMSU electrical auxiliary is an overvoltage release. It is dedicated to Acti9 iC60, iID, iID40, iDPN Vigi, iSW-NA, iC40, iCV40, iC40 XA, iCV40 XA, iCV40 XA, iC60 & iID double terminals, iC60 RCBO, iKQE RCBO. For a four-phase network, use three iMSU tripping auxiliaries. It provides a protection of equipment against overvoltage on the electrical network (neutral conductor break) and voltage monitoring between phase and neutral conductors. It switches of the power supply by opening the breaker with which it is combined, in the event that the phase/neutral voltage is exceeded. The width in 9mm pitches is 2. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Technical specifications

Rated voltage
230 V
Number of fault-signal switches
0
Device fitting
Miniature circuit breaker (MCB)
With auto test for earth leakage function
no
Suitable for max. number of poles main contact unit
4 (Total: 4)
Suitable for max. current main contact unit
63 A
