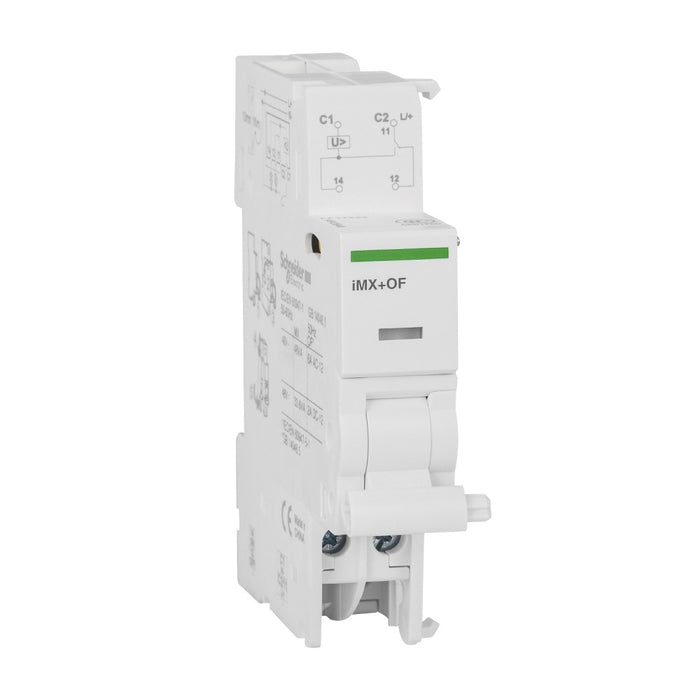

Acti9 Shunt Trip Release w/OC Contact iMX+OF Release 48VAC
Product Details
shunt trip release with OC contact Acti9 iMX+OF voltage release 48 V AC
This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The product colour is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The product colour is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
