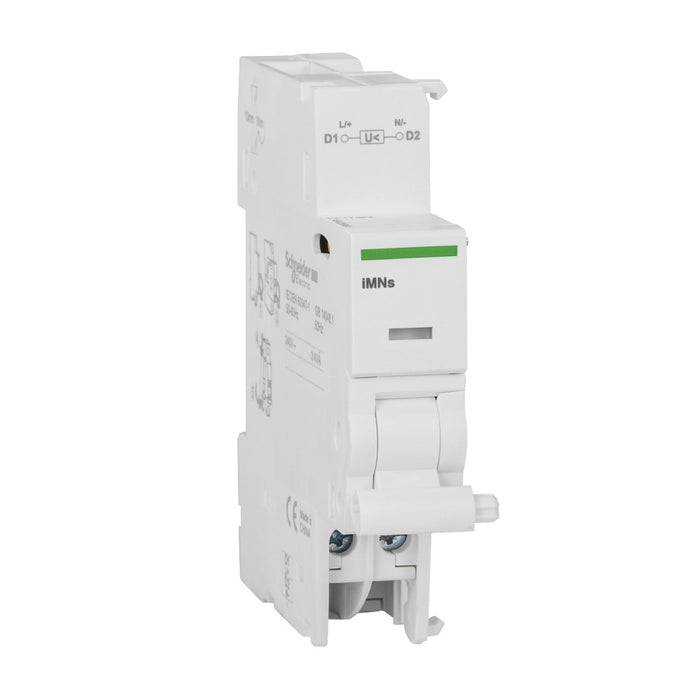

Acti9 Undervoltage Release iMNs Voltage Release 220-240VAC
Schneider Electric

Acti9 Undervoltage Release iMNs Voltage Release 220-240VAC

Ideal part number SCHA9A26963 Manufacturer number A9A26963 Barcode 3606480088018
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

undervoltage release Acti9 iMNs voltage release 220...240 V AC

This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220…240VAC. It can be mounted on a DIN rail for modular installation. The product colour is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Technical specifications

Rated voltage
240 V
Number of fault-signal switches
0
Device fitting
Miniature circuit breaker (MCB)
With auto test for earth leakage function
no
Suitable for max. number of poles main contact unit
4 (Total: 4)
Suitable for max. current main contact unit
63 A
