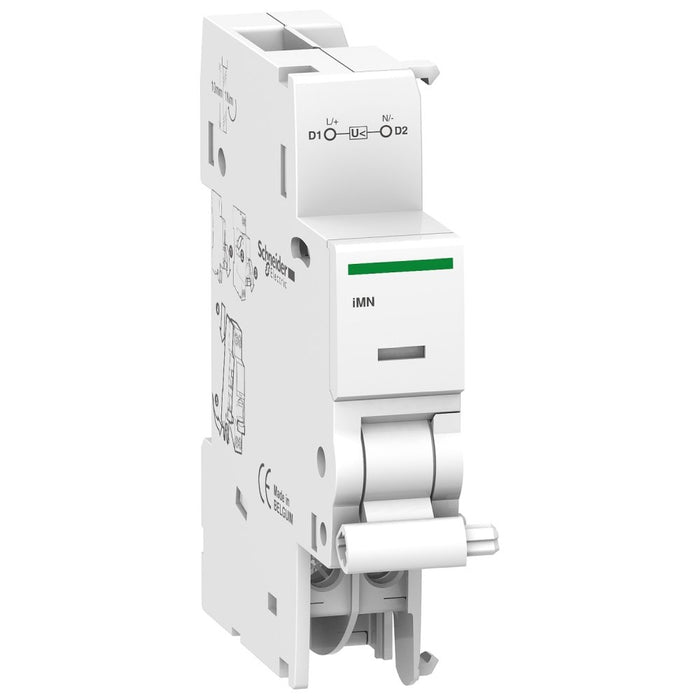

Acti9 Undervoltage Release Imn 24VAC/24VDC
Schneider Electric

Acti9 Undervoltage Release Imn 24VAC/24VDC

Ideal part number SCHA9A27108 Manufacturer number A9A27108 Barcode 3606485441474
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Undervoltage release Acti9 iMN 24VAC/24VDC

This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 24VAC or 24VDC. It can be mounted on a DIN rail for modular installation. The product colour is white (RAL9003). The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Technical specifications

Rated voltage
24 V
Number of fault-signal switches
0
Device fitting
Miniature circuit breaker (MCB)
With auto test for earth leakage function
no
Suitable for max. number of poles main contact unit
4 (Total: 4)
Suitable for max. current main contact unit
63 A
