ITL Plus Impulse Relay 16A 1P UC 230VAC
Schneider Electric

ITL Plus Impulse Relay 16A 1P UC 230VAC

Ideal part number SCHA9C15032 Manufacturer number A9C15032 Barcode 3606480376979
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

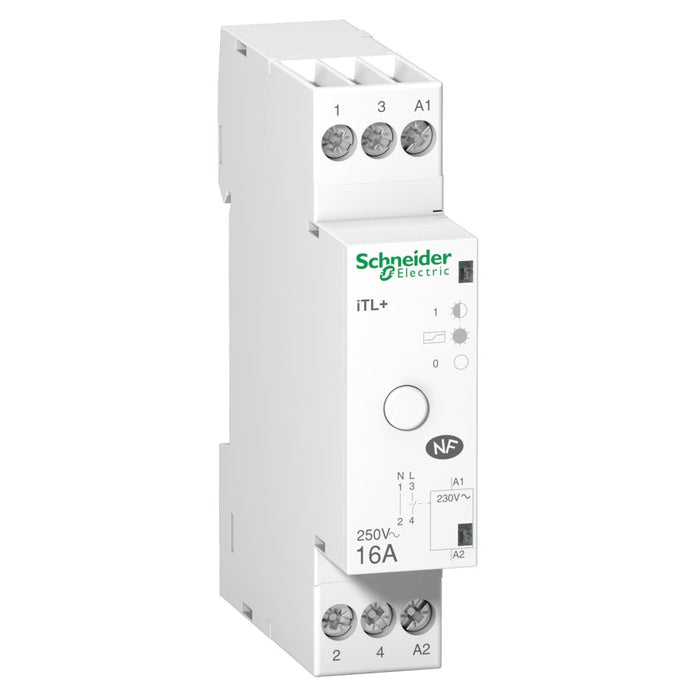

ITL Plus Impulse Relay 16A 1P UC 230VAC

This Acti9 iTL+ is a silent modular impulse relay. This 1P+N device has 1 normally open contact. The rated current is 16A, 230VAC operating voltage and it operates with 230VAC control voltage. Electrical endurance goes up to 5000000 cycles for AC-21 or 5000000 cycles for AC-22. The switching frequency is 6 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The iTL+ high-performance impulse relay allows remote control of single-phase circuits. It is designed for demanding applications. It is mainly used for lighting control applications. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The product weight is 70g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C. This product is compliant with IEC/EN 60669-2-2 standard.

Technical specifications

Mounting method
DIN rail
Function
Mechanical switch
Built-in depth
43.5 mm
Width in number of modular spacings
1
Control voltage 1
230 V
Type of control voltage 1
AC
Frequency control voltage 1
50 Hz
Voltage type
AC (Supply voltage: AC)
Supply voltage
250 V
Max. switching current
2900 A (Cos phi = 0.6: 2900)
Max. incandescent lamp load
2900 W
Max. load fluorescent lamp
2900 VA (Parallel compensated: 2900)
Rated switch current
16 A
