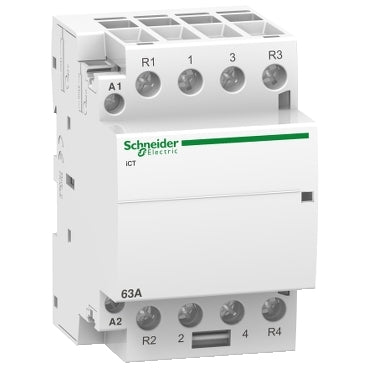

CT Contactor 2N/O 2N/C 63A 240V
Schneider Electric

CT Contactor 2N/O 2N/C 63A 240V

Ideal part number SCHA9C20868 Manufacturer number A9C20868 Barcode 3606480375170
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

iCT 63A 2NO+2NC 220...240V 50Hz contactor

This Acti9 iCT is a modular contactor. It is a 4P remote control device with 2 normally open contacts and 2 normally close contacts. The rated current is 63A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Technical specifications

Built-in depth
43.5 mm
Rated operating voltage
400 V
Max. incandescent lamp load
22500 W
Max. load fluorescent lamp
11550 VA (Duo circuit: 17700, Parallel compensated: 10500)
Slider for hand switch
no
Voltage type
AC (Excitation voltage: AC, Operating voltage: AC)
Degree of protection
IP20 (Ip: IP20)
Rated operation current
63 A
Additional equipment possible
yes
Rated excitation voltage
230 V
