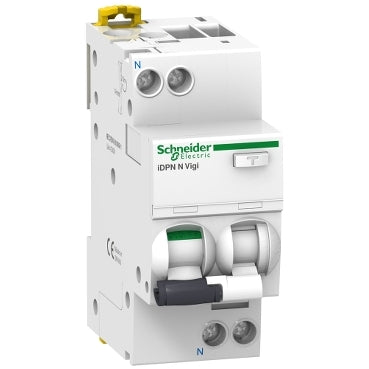

Acti9 RCBO 1P+N 10A 30mA 6kA C-Curve A Si
Schneider Electric

Acti9 RCBO 1P+N 10A 30mA 6kA C-Curve A Si

Ideal part number SCHA9D33610 Manufacturer number A9D33610 Barcode 3606480472138
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 iDPN N Vigi - RCBO - 1P+N - 10A - C Curve - 6000A - 30mA - type A-SI

This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It has 2P with 1 protected pole, 10A rated current and C tripping curve. This A-SI type device has 30mA sensibility. Breaking capacity at 230VAC is 6000A according to IEC 61009-1. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It brings safety and reliable solution for commercial and industrial applications. This product is compliant with EN/IEC 61009-2-1 standard. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Technical specifications

Voltage type
AC
Built-in depth
44 mm
Rated current
10 A
Rated voltage
230 V
Release characteristic
C
Rated fault current
0.03 A
Leakage current type
A
Surge current capacity
3 kA
Current limiting class
3
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
yes
Number of poles
2 (Total: 2)
Anti-nuisance tripping version
no
