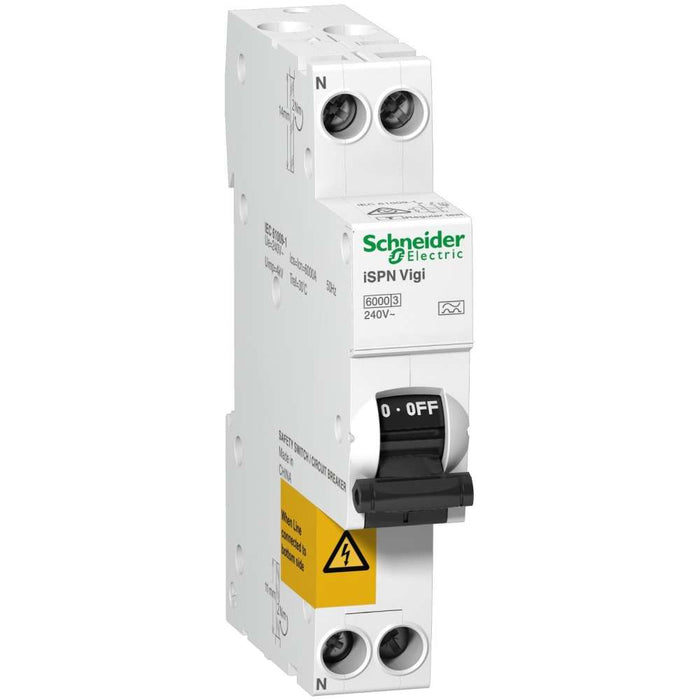

Acti9 Vigi ISPN RCBO 25A 30mA 6kA Type A Slimline
Schneider Electric

Acti9 Vigi ISPN RCBO 25A 30mA 6kA Type A Slimline

Ideal part number SCHA9D73625 Manufacturer number A9D73625 Barcode 3606480568121
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

iSPN Vigi - earth leakage circuit breaker - 1P + N - C - 25A - 30 mA - 6000 A

This iSPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 25A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according 0 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. A push-test button T is positioned on the front of the device for testing that product is operational. This product is compliant with IEC 61009-2-2 and AS/NZS 61009.1 standards. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 55°C. The storage temperature is from -25°C to 70°C.

Technical specifications

Voltage type
AC
Rated current
25 A
Rated voltage
240 V
Release characteristic
C
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Width in number of modular spacings
2
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
no
Number of poles
2 (Total: 2)
Anti-nuisance tripping version
no
