Acti9 RTL Timer 1C/O 8A 24-240VAC
Schneider Electric

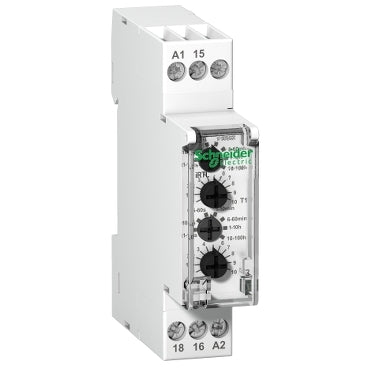

Acti9 RTL Timer 1C/O 8A 24-240VAC

Ideal part number SCHA9E16069 Manufacturer number A9E16069 Barcode 3606480377457
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC

This Acti9 iRTL product is a Time delay relay. The time delay range is from 0.1s to 360000s. It delays de-energizing of a load upon opening of an auxiliary contact (push button). The load is de-energized at the end of time delay T. The operating frequency is 50Hz or 60Hz. The Uc control and power supply voltage is from 24VAC to 240VAC +/-10% and 24VDC +/-10%. The single time delay cycle starts only upon release of an auxiliary contact (push button). The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 93mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.

Technical specifications

Mounting method
DIN rail
Function
Multi function
Built-in height
81 mm
Type of excitation
Analogue with multi function
Width in number of modular spacings
1
Number of changeover switches
1
Control voltage 1
240 V
Control voltage 2
24 V
Type of control voltage 1
AC
Type of control voltage 2
DC
Frequency control voltage 1
60 Hz
Frequency control voltage 2
0 Hz
Voltage type
AC (Supply voltage: AC)
Supply voltage
240 V
1st interval unit
Seconds/hours
2nd interval unit
Seconds/hours
1st interval
0.1
2nd interval
0.1
Nominal switching current at 250 V AC
21 A
