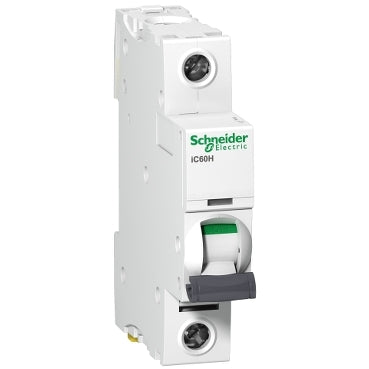

Acti9 IC60H MCB 1P 63A 10kA D-Curve
Schneider Electric

Acti9 IC60H MCB 1P 63A 10kA D-Curve

Ideal part number SCHA9F55163 Manufacturer number A9F55163 Barcode 3606480515279
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 iC60H Miniature Circuit Breaker 1P 63A 10kA D Curve

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole, 63A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 15kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 240VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.125kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Technical specifications

Voltage type
AC/DC
Built-in depth
44.5 mm
Rated current
63 A
Rated voltage
240 V
Frequency
50 Hz
Release characteristic
D
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
1
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
1 (Total: 1)
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
