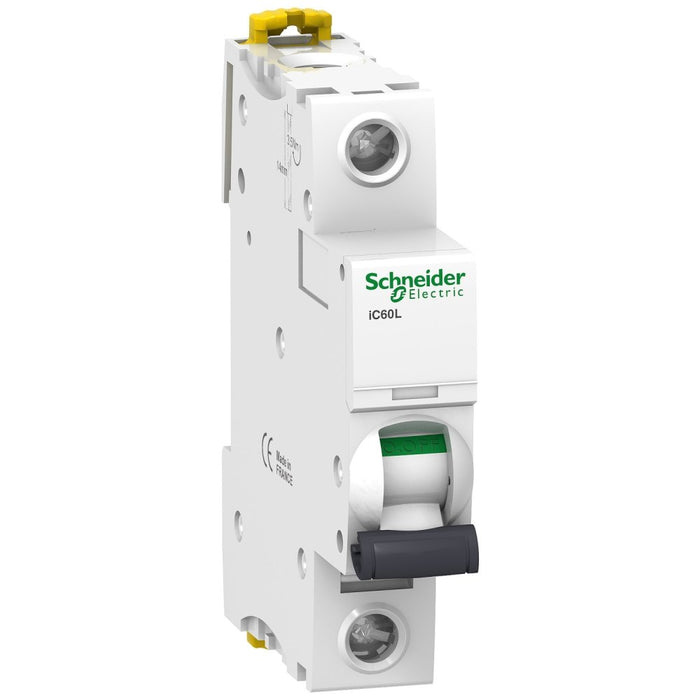

Acti9 iC60L MCB 1P 40A 20kA B-Curve
Schneider Electric

Acti9 iC60L MCB 1P 40A 20kA B-Curve

Ideal part number SCHA9F93140 Manufacturer number A9F93140 Barcode 3606480083709
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Miniature circuit-breaker, Acti9 iC60L, 1P, 40 A, B curve, 15000 A 20 kA (IEC 60947-2)

This Acti9 iC60L is a low voltage miniature circuit breaker (MCB). It has 1P with 1 protected pole, rated current 40A and B tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. It is DIN rail mountable. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Technical specifications

Voltage type
AC/DC
Built-in depth
44.5 mm
Rated current
40 A
Rated voltage
230 V
Frequency
50 Hz
Release characteristic
B
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
1
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
1 (Total: 1)
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20 kA
