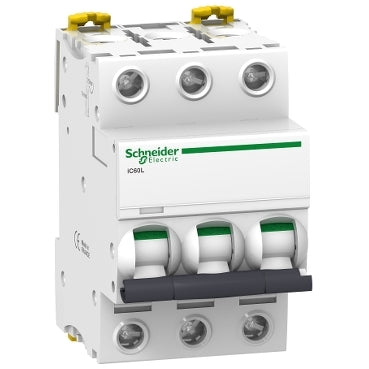

Acti9 IC60L MCB 3P 4A 15kA C-Curve

Acti9 IC60L MCB 3P 4A 15kA C-Curve

by Schneider Electric
Ideal Part Number SCHA9F94304 Manufacturer Number A9F94304 SKU 3606480084089

Product Details

Acti9 IC60L MCB 3P 4A 15kA C-Curve

Click and Collect: Pick up from your branch in 1 hour

Technical Documents

Technical Specifications

Voltage type
AC/DC
Built-in depth
44.5000
Rated current
4.0000
Rated voltage
400.0000
Frequency
50
Release characteristic
C
Current limiting class
3.0000
Over voltage category
4.0000
Pollution degree
3.0000
Width in number of modular spacings
3.0000
Degree of protection (IP)
IP20
Number of protected poles
3.0000
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles (total)
3.0000
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15.0000
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15.0000
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100.0000
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100.0000
Built-in depth (unit)
mm
Rated current (unit)
A
Rated voltage (unit)
V
Frequency (unit)
Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (unit)
kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (unit)
kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (unit)
kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (unit)
kA
