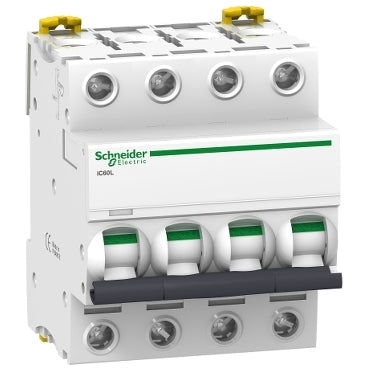

Acti9 IC60L MCB 4P 25A 15kA C-Curve

Acti9 IC60L MCB 4P 25A 15kA C-Curve

by Schneider Electric
Ideal Part Number SCHA9F94425 Manufacturer Number A9F94425 Barcode 3606480084201

Product Details

Acti9 IC60L Miniature Circuit Breaker, 4Pole, 25A, 15kA, C-Curve
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC/DC
Built-in depth
44
Rated current
25
Rated voltage
400
Frequency
50
Release characteristic
C
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
4
Degree of protection (IP)
IP20
Number of protected poles
4
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles (total)
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
50
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25
Built-in depth (unit)
mm
Rated current (unit)
A
Rated voltage (unit)
V
Frequency (unit)
Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (unit)
kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (unit)
kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (unit)
kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (unit)
kA
