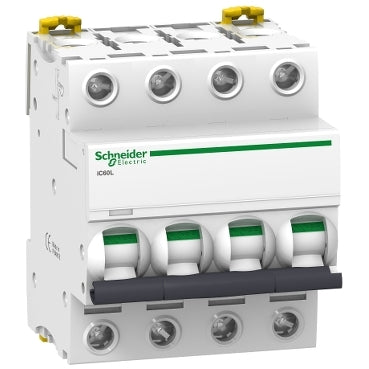

Acti9 IC60L MCB 4P 50A 15kA C-Curve

Acti9 IC60L MCB 4P 50A 15kA C-Curve

by Schneider Electric
Ideal Part Number SCHA9F94450 Manufacturer Number A9F94450 Barcode 3606480084126

Product Details

Acti9 IC60L Miniature Circuit Breaker, 4Pole, 50A, 15kA, C-Curve
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC/DC
Built-in depth
44 mm
Rated current
50 A
Rated voltage
400 V
Frequency
50 Hz
Release characteristic
C
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
4
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
4
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
4 (Total: 4)
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
