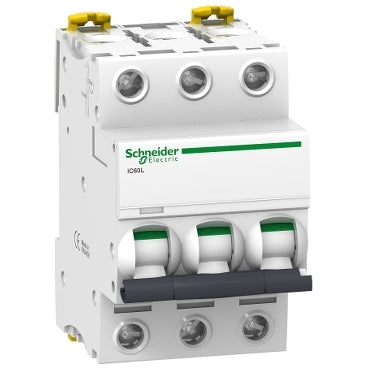

Acti9 IC60L MCB 3P 1A 15kA K-Curve

Acti9 IC60L MCB 3P 1A 15kA K-Curve

by Schneider Electric
Ideal Part Number SCHA9F95301 Manufacturer Number A9F95301 Barcode 3606480084942

Product Details

Acti9 IC60L Miniature Circuit Breaker, 3Pole, 1A, 15kA, K-Curve
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC/DC
Built-in depth
44 mm
Rated current
1 A
Rated voltage
400 V
Frequency
50 Hz
Release characteristic
K
Current limiting class
3
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
3
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
3
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
3 (Total: 3)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100 kA
