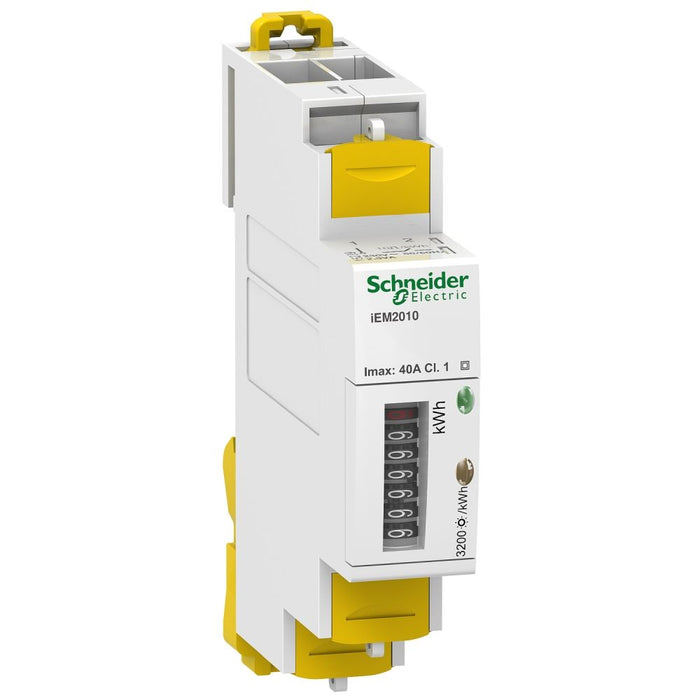

Phase Meter iEM2010 230V 40A With Pulse
Schneider Electric

Phase Meter iEM2010 230V 40A With Pulse

Ideal part number SCHA9MEM2010 Manufacturer number A9MEM2010 Barcode 3606480217418
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

modular single phase power meter iEM2010 230V 40A with pulse

The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. It feature a 7 digits mechanical display to display active energy. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active Energy. Suitable for a 230VAC network, with a supply voltage range of 184 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 40A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication is assured by 1 pulse output. Product dimensions are as follows: width 18 mm, depth 67 mm, height 95 mm and product weight 73 g. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.

Technical specifications

Mounting method
DRA (DIN-rail adapter)
Model
Direct measurement
Suitable for
Purchase
Type of indication
Digital
Frequency
50 Hz
Max. current
40 A (Imax: 40)
Width in number of modular spacings
1
Number of positions total
9 (Counter: 9)
Type of meter
Electronic
Degree of protection
IP40 (Ip: IP40)
Type of interface
None
Energy type
Effective power
Tariff type
One-tariff
Escapement mechanism
no
Calibrated
yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
100 Imp/kWh (kvarh)
Accuracy class
B
Pole type
Single phase
Measurement type load profile
no
EEC40 signature
no
With lock code
no
Nominal voltage
184..276 V (Un n-l: 184..276)
Nominal current
40 A (In: 40)
