Energy kWh Meter 63A 1P Pulse Output
Schneider Electric

Energy kWh Meter 63A 1P Pulse Output

Ideal part number SCHA9MEM2105 Manufacturer number A9MEM2105 Barcode 3606480835230
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

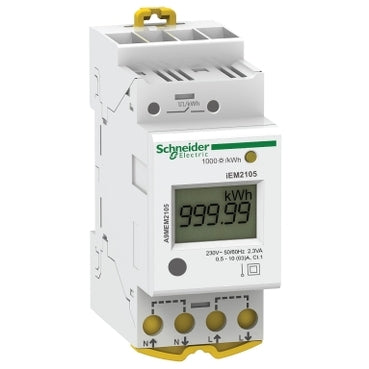

Modular single phase Kilowatt Hour Power meter iEM2105 - 230V - 63Amp with pulse

The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. It feature a 6 digits LCD display to display active and reactive energy or power measurements. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 195 to 253 VAC at 50Hz. Direct connect current measurement up to 45A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is Modbus RTU with 2 wire terminal support, a configurable pulse output is also available. You will have the possibility to switch between 2 tariffs thanks to the Modbus communication bus. Product dimensions are as follows: width 17.5 mm, depth 63 mm, height 90 mm. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.

Technical specifications

Mounting method
DRA (DIN-rail adapter)
Model
Direct measurement
Suitable for
Purchase
Type of indication
Digital
Frequency
50 Hz
Max. current
63 A (Imax: 63)
Width in number of modular spacings
2
Number of positions total
5 (Counter: 5)
Type of meter
Electronic
Degree of protection
IP50 (Ip: IP50)
Type of interface
None
Energy type
Effective power
Tariff type
Two-tariff
Tariff control
External
Escapement mechanism
no
Calibrated
yes
Pulse output
Electrical
Pulse type
S0
Pulse rate
1..1 Imp/kWh (kvarh)
Pole type
Single phase
Measurement type load profile
no
EEC40 signature
no
With lock code
no
Nominal voltage
184..276 V (Un n-l: 184..276)
Nominal current
63 A (In: 63)
