Energy kWh Meter 3Ph 63A Modbus
Schneider Electric

Energy kWh Meter 3Ph 63A Modbus

Ideal part number SCHA9MEM3150 Manufacturer number A9MEM3150 Barcode 3606480481512
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

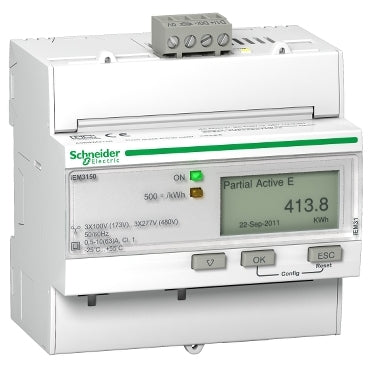

Three phase Kilowatt Hour energy meter iEM3150 - 63 Amp - Modbus

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signalling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.

Technical specifications

Mounting method
DRA (DIN-rail adapter)
Model
Direct measurement
Suitable for
Purchase/supply
Type of indication
Digital
Frequency
50 Hz
Max. current
63 A (Imax: 63)
Width in number of modular spacings
5
Number of positions total
9 (Counter: 9)
Type of meter
Electronic
Degree of protection
IP20 (Ip: IP20)
Type of interface
Modbus
Energy type
Effective power
Tariff type
One-tariff
Escapement mechanism
no
Calibrated
no
Approval
Domestic
Pulse output
Optic
Pulse type
S0
Pulse rate
0..500 Imp/kWh (kvarh)
Accuracy class
B
Pole type
Three conductor/four conductor
Measurement type load profile
no
EEC40 signature
no
With lock code
no
Nominal voltage
100..277 V (Un n-l: 100..277, Un l-l: 173..480)
Nominal current
63 A (In: 63)
