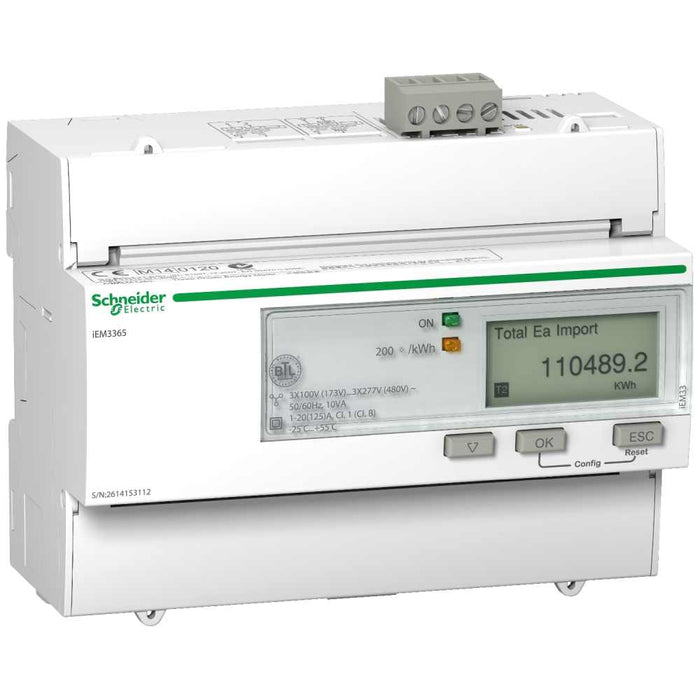

Energy Meter iEM3365 125A BACnet Digital Multitariff MID
Schneider Electric

Energy Meter iEM3365 125A BACnet Digital Multitariff MID

Ideal part number SCHA9MEM3365 Manufacturer number A9MEM3365 Barcode 3606480696435
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

iEM3365 energy meter 125 A BACnet 1 digital I 1 digital O multitariff MID

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g).

Technical specifications

Mounting method
DRA (DIN-rail adapter)
Model
Direct measurement
Suitable for
Purchase/supply
Type of indication
Digital
Frequency
50 Hz
Max. current
125 A (Imax: 125)
Width in number of modular spacings
7
Number of positions total
9 (Counter: 9)
Type of meter
Electronic
Degree of protection
IP20 (Ip: IP20)
Type of interface
Other
Energy type
Effective power and blind power
Tariff type
Multi-tariff
Tariff control
Internal/external
Escapement mechanism
no
Calibrated
no
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
D0
Pulse rate
0..1000 Imp/kWh (kvarh)
Accuracy class
B
Pole type
Three conductor/four conductor
Measurement type load profile
no
EEC40 signature
no
With lock code
no
Nominal voltage
100..277 V (Un n-l: 100..277, Un l-l: 173..480)
Nominal current
125 A (In: 125)
