Auxiliary Contact Low Level OF+SDfor C60 C120 C60H-DC DPN ID
Schneider Electric

Auxiliary Contact Low Level OF+SDfor C60 C120 C60H-DC DPN ID

Ideal part number SCHA9N26899 Manufacturer number A9N26899 Barcode 3606480465376
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

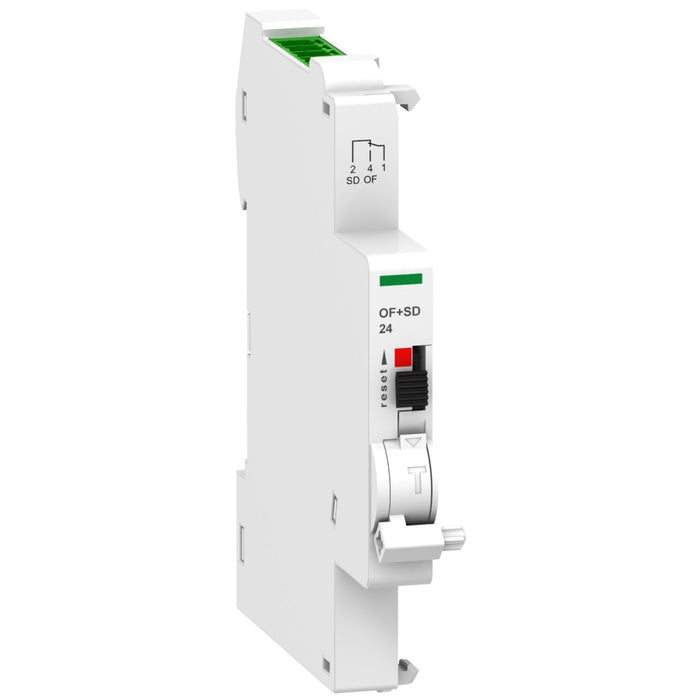

Acti9 - low level auxiliary contact OF+SD - for C60, C120, C60H-DC, DPN, ID

This Acti9 OF+SD24 electrical auxiliary is a double open/close or fault indicator contact. It is dedicated to iD, C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC It reports also the electrical fault, actuation of the tripping auxiliary, open or closed position of the associated device informations to a programmable logic controller. Remote indication of position and tripping upon a fault of the associated device. The 2 contacts (1NO + 1NC) can report the signalling information of the associated device to the Acti9 Smartlink. The width in 9mm pitches is 1. It is a ComReady device. There is a Test function on the toggle. The Ue rated operational voltage is 24VDC. The In rated operational current is 2mA (mini) up to 100 mA (maxi). The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1. and IEC/EN 60947-5-4 standards.

Technical specifications

Rated voltage
24 V
Rated switch current
0.1 A
Number of fault-signal switches
1
Device fitting
Earth leakage circuit breaker and miniature circuit breaker (MCB)
With auto test for earth leakage function
no
Suitable for max. number of poles main contact unit
4 (Total: 4)
Suitable for max. current main contact unit
125 A
