Voltage Release MN 220-240VAC/DC
Schneider Electric

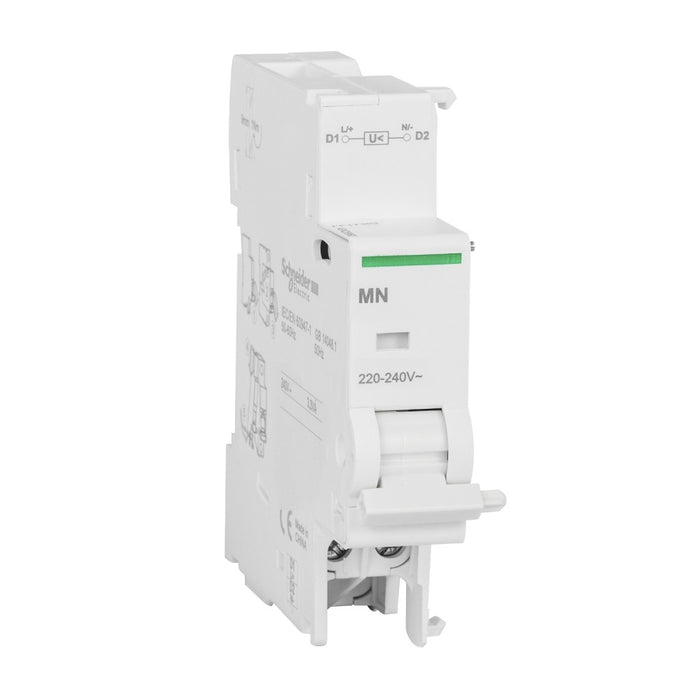

Voltage Release MN 220-240VAC/DC

Ideal part number SCHA9N26960 Manufacturer number A9N26960 Barcode 3606480382994
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Voltage release MN 220-240Vac dc

This Acti9 MN electrical auxiliary for C60, C10, DPN, Vigi, ID, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC is an instantaneous undervoltage release. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It prevents device closing again until its input voltage has been restored. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-1 and EN 60947-2 standards.

Technical specifications

Rated voltage
240 V
Number of fault-signal switches
0
Device fitting
Miniature circuit breaker (MCB)
With auto test for earth leakage function
no
Suitable for max. number of poles main contact unit
4 (Total: 4)
Suitable for max. current main contact unit
125 A
