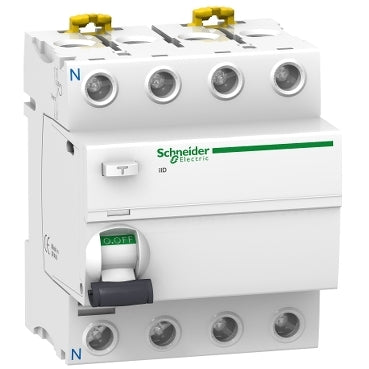

Acti9 RCCB 4P 80A 30mA Type-A
Schneider Electric

Acti9 RCCB 4P 80A 30mA Type-A

Ideal part number SCHA9R21480 Manufacturer number A9R21480 Barcode 3606480374593
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 iID - RCCB - 4P - 80A - 30mA - type A

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 80A, A type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Technical specifications

Mounting method
DIN rail
Built-in depth
44 mm
Rated current
80 A
Rated voltage
400 V
Number of poles
4
Rated fault current
0.03 A
Leakage current type
A
Selective protection
no
Surge current capacity
0.25 kA
Width in number of modular spacings
4
Short-time delayed tripping
no
Frequency
50/60 Hz
Degree of protection
IP20 (Ip: IP20)
Additional equipment possible
yes
