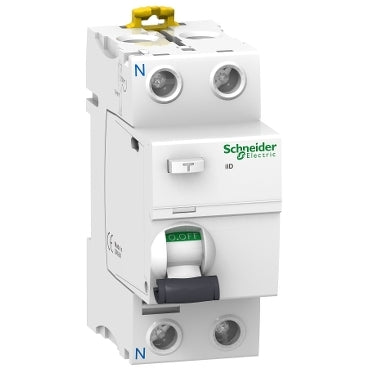

Acti9 RCCB 2P 63A 30mA 10kA RCD SI
Schneider Electric

Acti9 RCCB 2P 63A 30mA 10kA RCD SI

Ideal part number SCHA9R91263 Manufacturer number A9R91263 Barcode 3606480090493
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 iID - RCCB - 2P - 63A - 30mA - type A-SI

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 63A In rated current, a sensitivity of 30mA with a A-SI type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Technical specifications

Mounting method
DIN rail
Built-in depth
44 mm
Rated current
63 A
Rated voltage
230 V
Number of poles
2
Rated fault current
0.03 A
Leakage current type
Other
Selective protection
no
Surge current capacity
3 kA
Width in number of modular spacings
2
Short-time delayed tripping
no
Frequency
50/60 Hz
Degree of protection
IP20 (Ip: IP20)
Additional equipment possible
yes
