Acti9 Main Switch 1P 32A 250V
Schneider Electric

Acti9 Main Switch 1P 32A 250V

Ideal part number SCHA9S60132 Manufacturer number A9S60132 Barcode 3606480088711
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

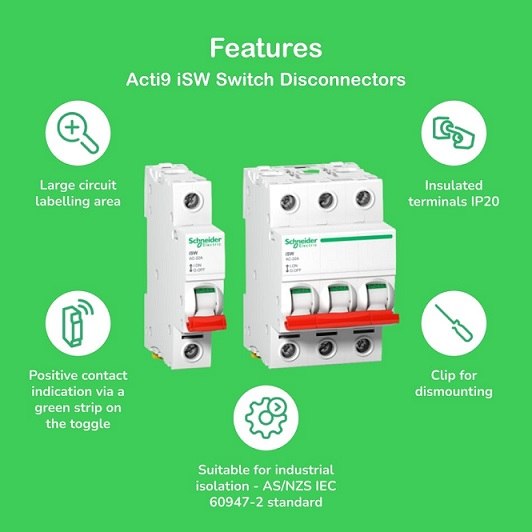

Acti9 iSW switch 1 pole 32A 250V

This Acti9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 32A, and operating voltage is 250VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.

Technical Specifications

Voltage type
AC
Switching function
Off switch
With signal lamp
no
Built-in depth
75 mm
Rated current
32 A
Rated voltage
250 V
Number of poles
1
Width in number of modular spacings
1
Colour calotte
Grey
Min. rated voltage
250 V
Degree of protection
IP20 (Ip: IP20)
