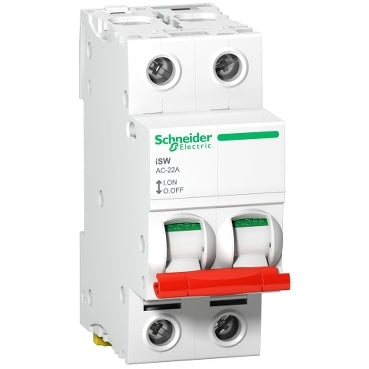

Acti9 Main Switch 2P 125A 415V
Schneider Electric

Acti9 Main Switch 2P 125A 415V

Ideal part number SCHA9S66292 Manufacturer number A9S66292 Barcode 3606480531477
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 iSW switch disconnector 2 poles 125A 415V

This Acti9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 125A, and operating voltage is 415VAC. Electrical endurance goes up to 2500 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.

Technical Specifications

Voltage type
AC
Switching function
Off switch
With signal lamp
no
Built-in depth
75 mm
Rated current
125 A
Rated voltage
240 V
Number of poles
2
Short-circuit breaking capacity
1 kA (Icw: 1)
Rated switching capacity
5 kA
Width in number of modular spacings
2
Colour calotte
White
Min. rated voltage
415 V
Degree of protection
IP20 (Ip: IP20)
