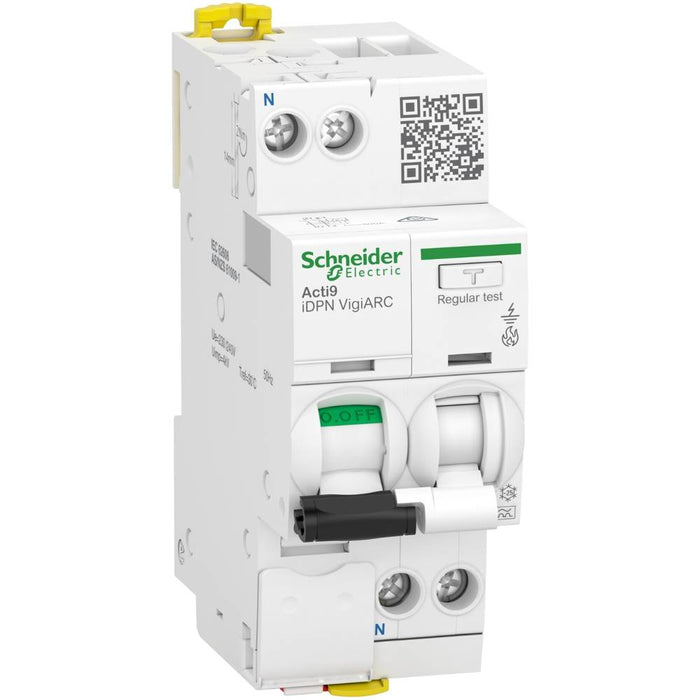

Acti9 iDPN H VigiArc 10A 1PN C 30mA Arc Fault Detector

This Acti9 iDPN H is an arc fault detection circuit breaker. It is a 1P+N circuit breaker, rated current is 10 A and C tripping curve. As circuit breaker, its breaking capacity, according to AS/NZS 61009.1, is 7500 A at 240 VAC. It has an electrical endurance going up to 20000 cycles and mechanical endurance going up to 20000 cycles. It detects arc fault who comes from fire start and is constantly analyzing electric settings. It isolates involved circuit automatically before first flame appearance. It is particulary adapted for circuit protection where the fire start is the most important in domestic intallation (outdoors, rooms). The Ue rated operational voltage is 240VAC. The Ui rated insulation voltage is 250 VAC. It has a Uimp rated impulse withstand voltage of 4 kV. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36 mm x (H) 91 mm x (D) 75 mm. The product weight is 205 g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. This product complies with EN/IEC 62606 and IEC 60898-1 standard.
