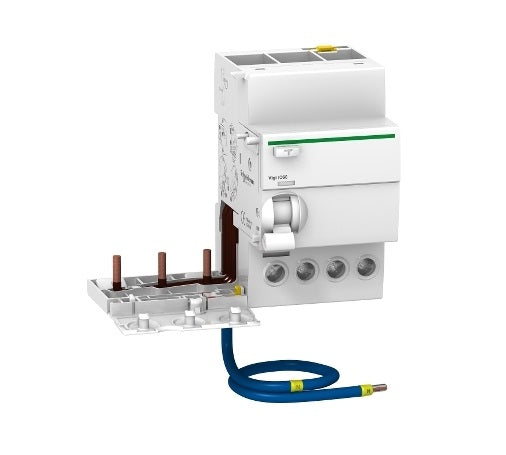

Vigi Ic60 E Leakage Add-On Block 3P+N 63A 30mA A type

Vigi Ic60 Earth Leakage Add-On Block, 3 pole + neutral, 63A, 30mA, A-type

This Acti9 Vigi iC60 is a modular add-on residual current device. It is a 3P + N, rated current is 63A, operating voltage is 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. A VisiTrip window is present to indicate a fault tripping by a red mechanical indicator on the front face. It has to be combined with a iC60 circuit breaker. This product is compliant with EN 61009-1 and IEC 61009-1 standards. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The dimensions are (W) 108mm x (H) 91mm x (D) 73.5mm. The weight is 245g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
