Vigi iC60 E Leakage Add-On Block 3P 63A 300mA A type Select
Schneider Electric

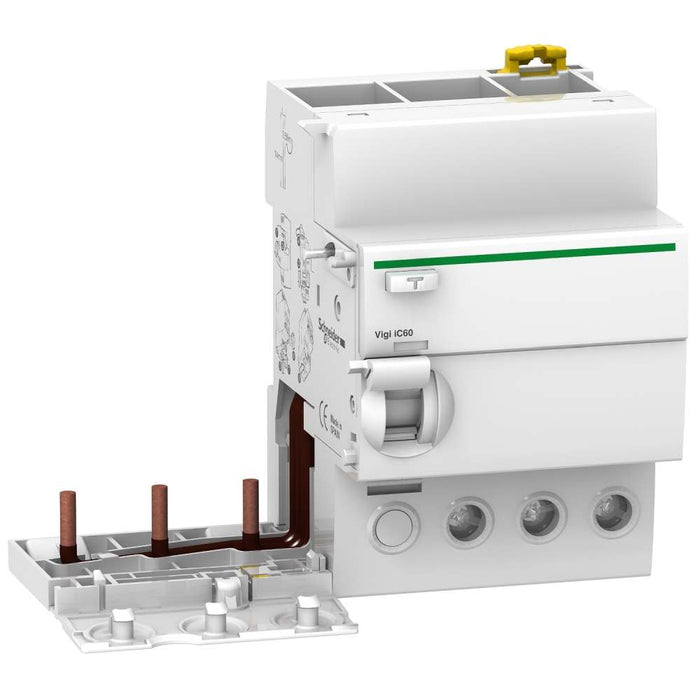

Vigi iC60 E Leakage Add-On Block 3P 63A 300mA A type Select

Ideal part number SCHA9V25363 Manufacturer number A9V25363 Barcode 3606480091100
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type -selective

This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 3P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations. This product is compliant with IEC 61009-1 and EN 61009-1 standard. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 117mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -25°C to +60°C. The storage temperature is -40°C to +85°C.

Technical specifications

Nominal current
63 A
Number of poles
3
Delay adjustable
no
Max. delay time
130 ms
Leakage current type
A
Rated fault current
0.3 A
Nominal voltage
400..415 V
Rated fault current adjustable
no
