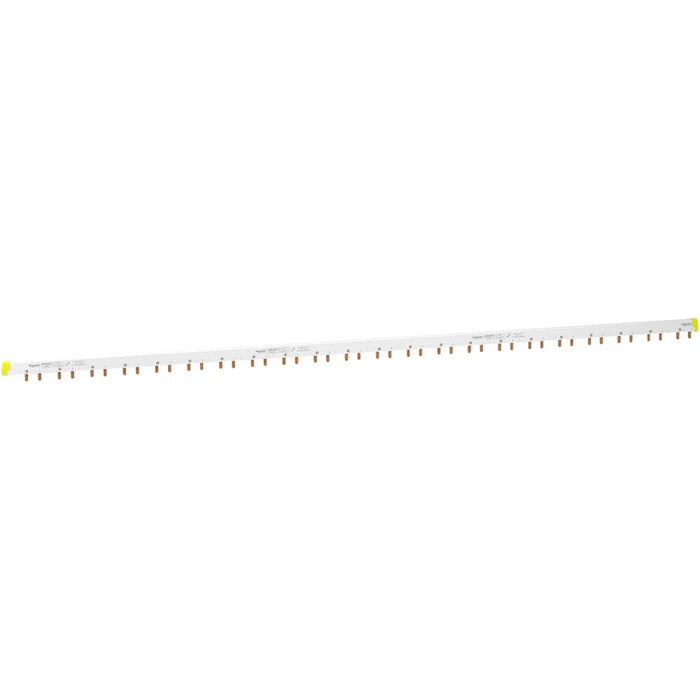

Comb Busbar 1L + N 100A 57 Module 18mm Pitch
Schneider Electric

Comb Busbar 1L + N 100A 57 Module 18mm Pitch

Ideal part number SCHA9XAH257 Manufacturer number A9XAH257 Barcode 3606480485145
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 - comb busbar - 1L+N with Aux - 18 mm pitch - 57 modules - 100A

This Acti9 product is a cuttable horizontal comb busbar 57 modules with 9mm auxiliary for Acti9 iC60 or Acti9 iK60. It is dedicated to Aux+3L installations. The type is AuxL1L2L3 (Auxiliary, Line). It is a set of 1 device. It is suitable for 22 devices (3P) with associated auxiliaries. The length is 1000mm.The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Technical specifications

Insulated
yes
Number of phases
1
Cross section
16 mm²
Rated permanent current Iu
100 A
Number of poles
2
Length
1000 mm
Type of electric connection
Pin
Suitable for devices with auxiliary switch
yes
Suitable for devices with N-conductor
yes
Suitable for number of devices
22
Max. rated operation voltage Ue
415 V
Module width
18 mm
