Comb Busbar 3L Balanced + Aux 57 Module 18mm Pitch
Schneider Electric

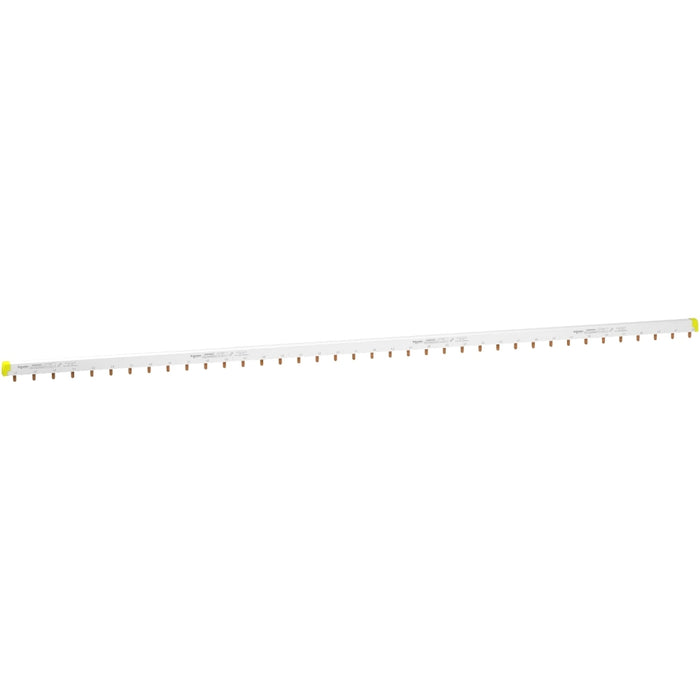

Comb Busbar 3L Balanced + Aux 57 Module 18mm Pitch

Ideal part number SCHA9XAH657 Manufacturer number A9XAH657 Barcode 3606480485206
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 - comb busbar - 3L balanced wtih Aux - 18 mm pitch - 57 modules

This Acti9 product is a cuttable horizontal comb busbar 57 modules with 9mm auxiliary for Acti9 C60. It is dedicated to (Auxiliary, Neutral, Line) installations. The distribution type is (Aux, N, L1), (Aux, N, L2), (Aux, N, L3). It is a set of 1 device. It is suitable for 38 devices (3P+N) with associated auxiliaries. The length is 1000mm. The total number of modules of 18mm is 57. The pin cross section is 16mm². The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s conforming to IEC 60695-2-1. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Technical specifications

Insulated
yes
Number of phases
3
Cross section
16 mm²
Rated permanent current Iu
100 A
Number of poles
4
Length
1000 mm
Type of electric connection
Pin
Suitable for devices with auxiliary switch
yes
Suitable for devices with N-conductor
no
Suitable for number of devices
38
Max. rated operation voltage Ue
415 V
Module width
18 mm
