Comb Busbar 1L + N 80A 12 Module Top Feed
Product Details

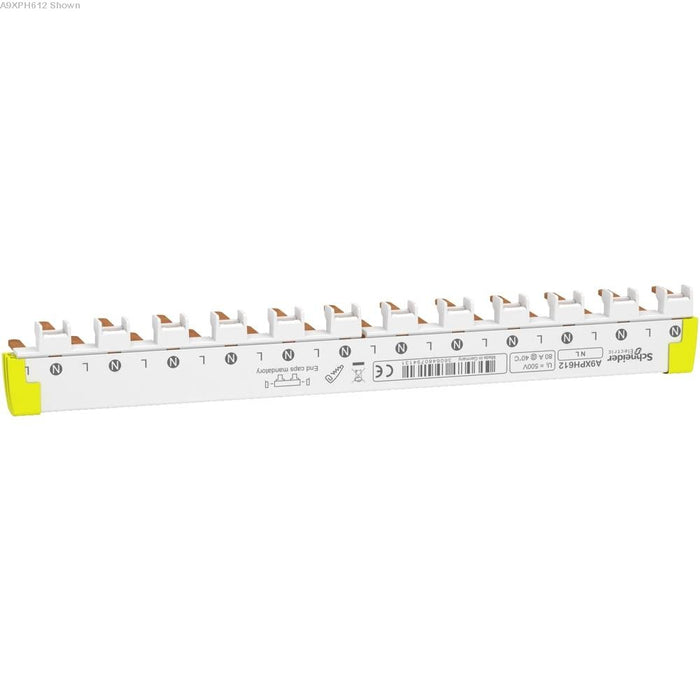

Acti9 Comb Busbar 1L+N 9mm pitch 12 modules 80A
This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is a set of 1 product. It is suitable for 12 devices with 1P+N pole and without associated auxiliaries. The length is 218mm. The total number of modules of 18mm is 12. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The colour of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.
This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is a set of 1 product. It is suitable for 12 devices with 1P+N pole and without associated auxiliaries. The length is 218mm. The total number of modules of 18mm is 12. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The colour of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.
