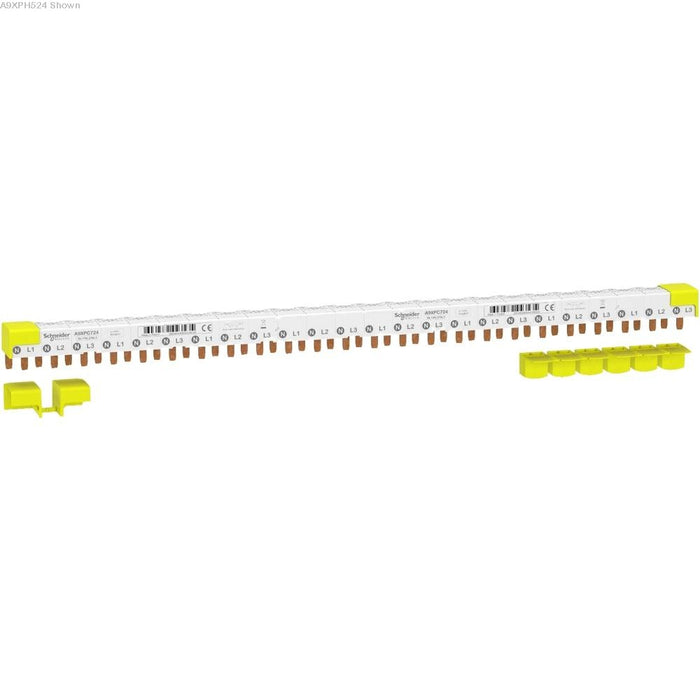

Comb Busbar 3L + N Balanced 80A 24 Module Top Feed
Schneider Electric

Comb Busbar 3L + N Balanced 80A 24 Module Top Feed

Ideal part number SCHA9XPC724 Manufacturer number A9XPC724 Barcode 3606489443535
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 Comb Busbar 3L+N 9mm pitch 24 modules 80A

This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is a set of 1 product. It is suitable for 8 devices with 3P+N pole and without associated auxiliaries. The length is 434mm. The total number of modules of 18mm is 24. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC (phase/neutral) and 400V (phase/phase). The colour of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.

Technical specifications

Insulated
yes
Number of phases
3
Rated permanent current Iu
80 A
Number of poles
4
Length
491 mm
Type of electric connection
Pin
Suitable for devices with auxiliary switch
no
Suitable for devices with N-conductor
yes
Suitable for number of devices
8
Max. rated operation voltage Ue
400 V
Module width
9 mm
