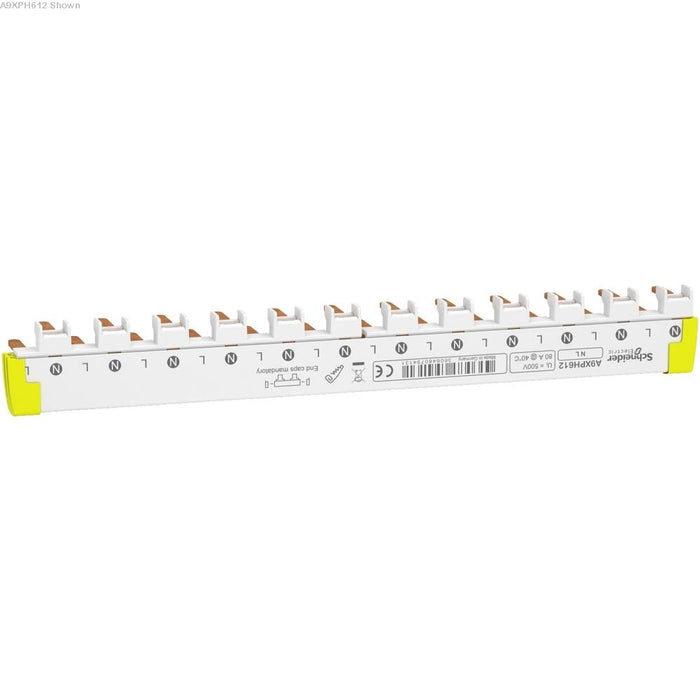

Comb Busbar 1L + N 80A 12 Module Bottom Feed
Schneider Electric

Comb Busbar 1L + N 80A 12 Module Bottom Feed

Ideal part number SCHA9XPH612 Manufacturer number A9XPH612 Barcode 3606480794131
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Acti9 Comb Busbar 1L+N bottom feed 9mm pitch 12 modules 80A

This Acti9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 12 modules of 18mm. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1). It is suitable for 12 devices with a 1P+N pole description. The distance between way is 18mm.

Technical specifications

Insulated
yes
Number of phases
1
Cross section
16 mm²
Rated permanent current Iu
80 A
Number of poles
2
Length
220 mm
Type of electric connection
Pin
Suitable for devices with auxiliary switch
no
Suitable for devices with N-conductor
yes
Suitable for number of devices
12
Max. rated operation voltage Ue
400 V
Module width
9 mm
