Comb Busbar 3L + N Balanced W/Aux + Vigi 80A 48 Module
Schneider Electric

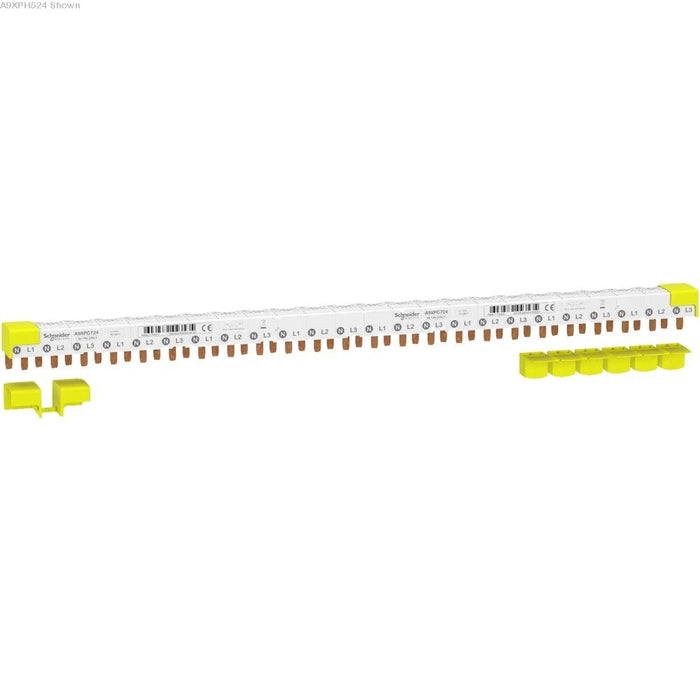

Comb Busbar 3L + N Balanced W/Aux + Vigi 80A 48 Module

Ideal part number SCHA9XPV748 Manufacturer number A9XPV748 Barcode 3606489443610
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

comb busbar, Acti9, 3L+N balanced with Aux and Vigi, 9 mm pitch, 48 modules, 80 A

This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC40 with 9mm auxiliary and vigi module. It is dedicated to (Auxiliary, Neutral, Line, Vigi) installations. The distribution type is (Aux, N, L1, Vigi). It is a set of 1 product. It is suitable for 18 devices with 3P+N pole and with associated auxiliaries and Vigi module. The length is 862mm. The total number of modules of 18mm is 48. The Ie rated operational current at 40°C is 80A. The Ui rated insulation voltage is 400VAC. The Ue rated operational voltage is 230VAC. The colour of the device is white (RAL 9003). The pollution degree is 3. The degree of protection is IP20 with end-pieces and tooth covers. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 61439-1 standards.

Technical specifications

Insulated
yes
Number of phases
3
Rated permanent current Iu
80 A
Number of poles
4
Length
826 mm
Type of electric connection
Pin
Suitable for devices with auxiliary switch
yes
Suitable for devices with N-conductor
yes
Suitable for number of devices
18
Max. rated operation voltage Ue
400 V
Module width
9 mm
