Modicon Power Supply 1Ph 24VDC 10W 0.4A Modular
Schneider Electric

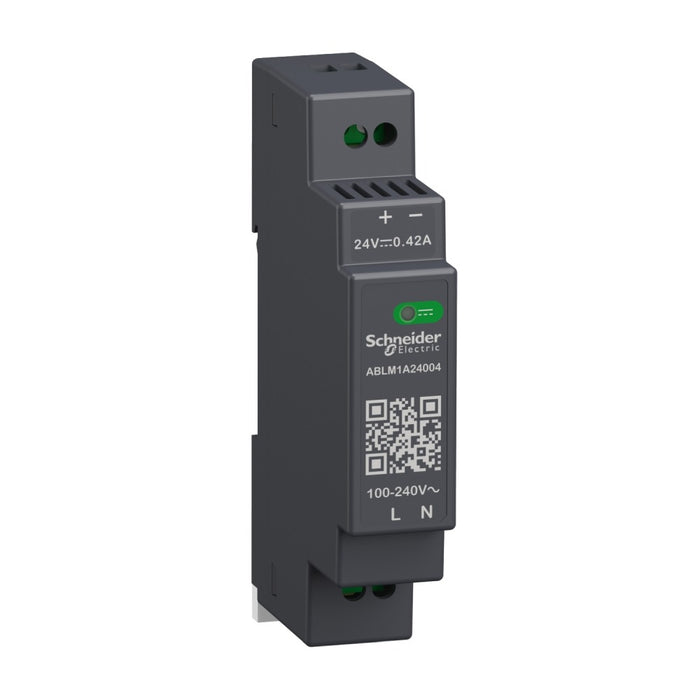

Modicon Power Supply 1Ph 24VDC 10W 0.4A Modular

Ideal part number SCHABLM1A24004 Manufacturer number ABLM1A24004 Barcode 3606481500106
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Modicon Power Supply 1 Phase 24VDC 10 Watt 0.4Amp Modular

The Modicon ABLM Modular are regulated power supplies designed to supply control circuits up to 60Watts in industrial and building automation systems. These Modular power supplies meet NEC Class 2 and Limited Power Source requirements, and conform to Overvoltage category III. The QR Code printed on the front allows direct access to the latest technical information.

Technical specifications

Width
18 mm
Height
91 mm
Depth
55.6 mm
Voltage type
AC (Supply voltage: AC)
Power output
10 W
Type of electric connection
screw
Rail mounting possible
yes
Degree of protection
IP20 (Ip: IP20)
Direct mounting possible
yes
1st secondary output voltage
24 V
Secondary voltage adjustable
no
Rated supply voltage AC 50 Hz
100-240 V
Rated supply voltage AC 60 Hz
100-240 V
Short-circuit-proof
yes
Nominal value output current 1
0.42 A
