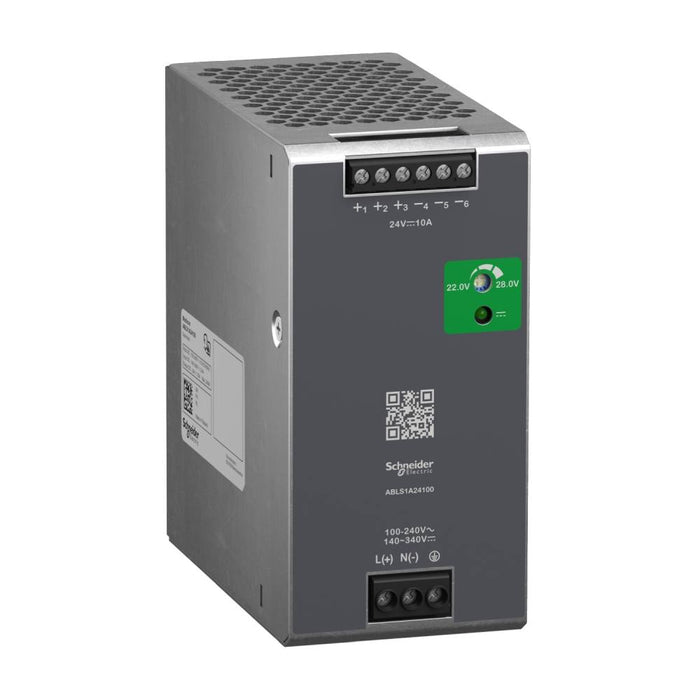

Modicon Power Supply 1Ph 240W 24VDC 10A Switch Mode

Ideal Part Number SCHABLS1A24100 Manufacturer Number ABLS1A24100 Barcode 3606481500250

Product Details

Modicon Power Supply 1 Phase 240 Watt 24VDC 10Amp Switch Mode

The Modicon ABLS Optimized Regulated power supplies are designed to supply control circuits in industrial applications from 50 up to 480 W The QR Code printed on the front allows direct access to the latest technical information.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Width
60 mm
Height
124 mm
Depth
117 mm
Voltage type
AC/DC (Supply voltage: AC/DC)
Power output
240 W
Type of electric connection
screw
Rail mounting possible
yes
Degree of protection
IP20 (Ip: IP20)
1st secondary output voltage
24 V
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
100-240 V
Rated supply voltage AC 60 Hz
100-240 V
Rated supply voltage DC
140-340 V
Short-circuit-proof
yes
Nominal value output current 1
10 A
