Modicon Power Supply 1Ph 120W 48VDC 2.5A Switch Mode
Schneider Electric

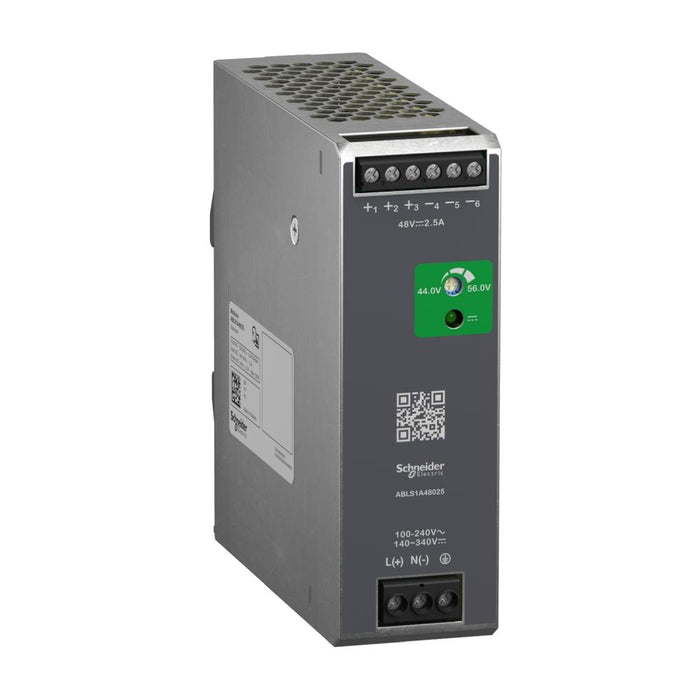

Modicon Power Supply 1Ph 120W 48VDC 2.5A Switch Mode

Ideal part number SCHABLS1A48025 Manufacturer number ABLS1A48025 Barcode 3606481500243
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Modicon Power Supply 1 Phase 120 Watt 48VDC 2.5Amp Switch Mode

The Modicon ABLS Optimized Regulated power supplies are designed to supply control circuits in industrial applications from 50 up to 480 W The QR Code printed on the front allows direct access to the latest technical information.

Technical specifications

Width
40 mm
Height
124 mm
Depth
117.6 mm
Voltage type
AC/DC (Supply voltage: AC/DC)
Power output
120 W
Type of electric connection
screw
Rail mounting possible
yes
Degree of protection
IP20 (Ip: IP20)
1st secondary output voltage
48 V
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
100-240 V
Rated supply voltage AC 60 Hz
100-240 V
Rated supply voltage DC
140-340 V
Short-circuit-proof
yes
Nominal value output current 1
2.5 A
