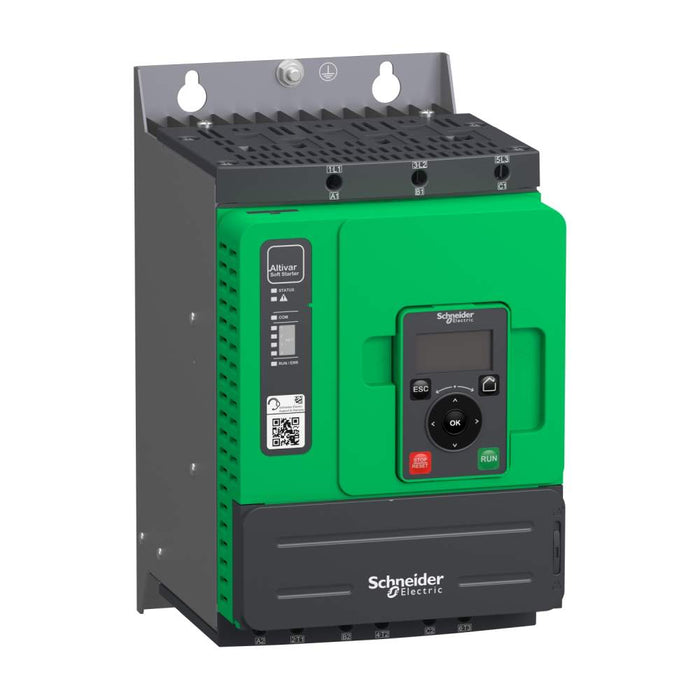

Altivar Soft Starter 17A 208-690V
Schneider Electric

Altivar Soft Starter 17A 208-690V

Ideal part number SCHATS480D17Y Manufacturer number ATS480D17Y Barcode 3606481088994
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Altivar Soft Starter 17A 208-690V

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 17A in normal duty, it supplies motor from 4kW to 15kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 160mm (width) x 203mm (depth) x 275mm (height) and it weighs 4,9kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Technical specifications

With display
no
Rated operating voltage Ue
208…690 V
Rated control supply voltage AC 50 Hz
208…690 V
Rated control supply voltage AC 60 Hz
208…690 V
Rated operation current Ie at 40 °C Tu
17 A
Rated power three-phase motor, inline, at 230 V
4 kW
Rated power three-phase motor, inline, at 400 V
7.5 kW
Rated power three-phase motor, inside delta, at 230 V
7.5 kW
Rated power three-phase motor, inside delta, at 400 V
15 kW
Rated surrounding temperature without derating
40 °C
Integrated motor overload protection
yes
Voltage type for actuating
AC
Internal bypass
no
Torque control
yes
