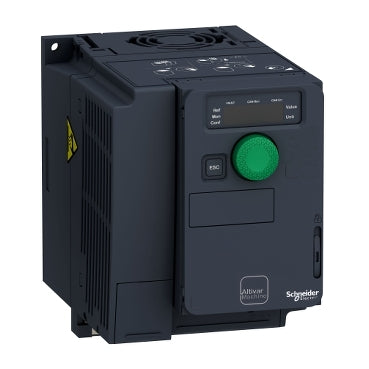

Altivar Variable Speed Drive 1Ph 0.55kW 240V Compact
Schneider Electric

Altivar Variable Speed Drive 1Ph 0.55kW 240V Compact

Ideal part number SCHATV320U06M2C Manufacturer number ATV320U06M2C Barcode 3606480966538
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC.


It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors.

Technical specifications

Width
72 mm
Height
143 mm
Depth
138 mm
Number of analogue inputs
3
Number of analogue outputs
1
Degree of protection
IP20 (Ip: IP20)
Mains voltage
230 V
Integrated breaking resistance
yes
Max. output frequency
0.599 kHz
Standard(s)
IEC 61800-5-1
