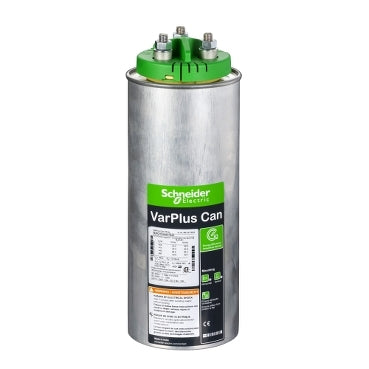

Capacitor Can Hdy 40/48kVAr 525V
Ideal Part Number SCHBLRCH400A480
Manufacturer Number BLRCH400A480B52
Barcode 3606485254029
Product Details
VarPlus Can HDuty Capacitor - 40/48 kvar - 525 V - 50/60Hz
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated Current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 40 kVar at 525V AC,50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 4.1 kg.
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated Current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 40 kVar at 525V AC,50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 4.1 kg.
