NSX100/160/250 Trip Unit 3P 40A MicroLogic 2.2G
Schneider Electric

NSX100/160/250 Trip Unit 3P 40A MicroLogic 2.2G

Ideal part number SCHC1032G040 Manufacturer number C1032G040 Barcode 3606482000582
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

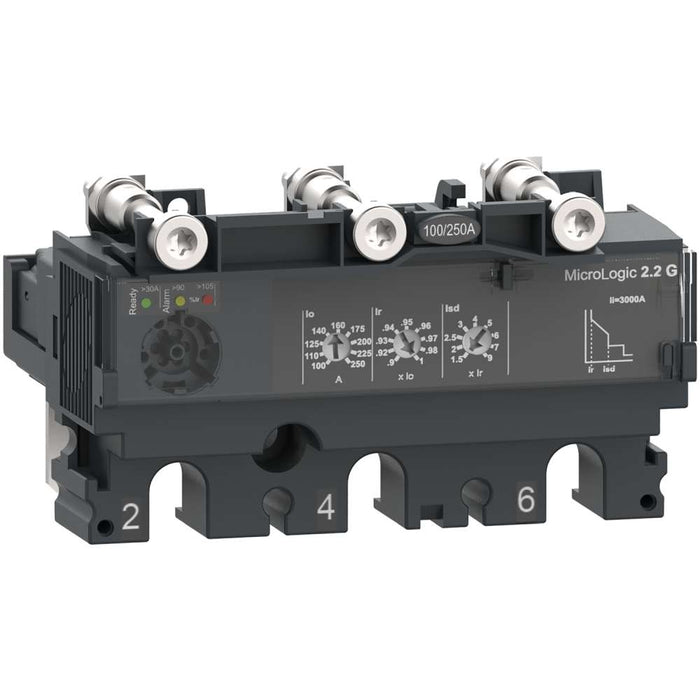

NSX100/160/250 Trip Unit, 3 poles 40A, MicroLogic 2.2G

This MicroLogic 2.2 G is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for generator protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 G indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
40 A
Number of poles
3
Short-circuit release function
Delayed
Overload release current setting
18…40 A
