NSX100-250 Trip Unit 3P 40A MicroLogic Vigi 4.2AL
Schneider Electric

NSX100-250 Trip Unit 3P 40A MicroLogic Vigi 4.2AL

Ideal part number SCHC1034A040 Manufacturer number C1034A040 Barcode 3606481993922
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX100-250 Trip Unit, 3 poles, 40A MicroLogic Vigi 4.2AL

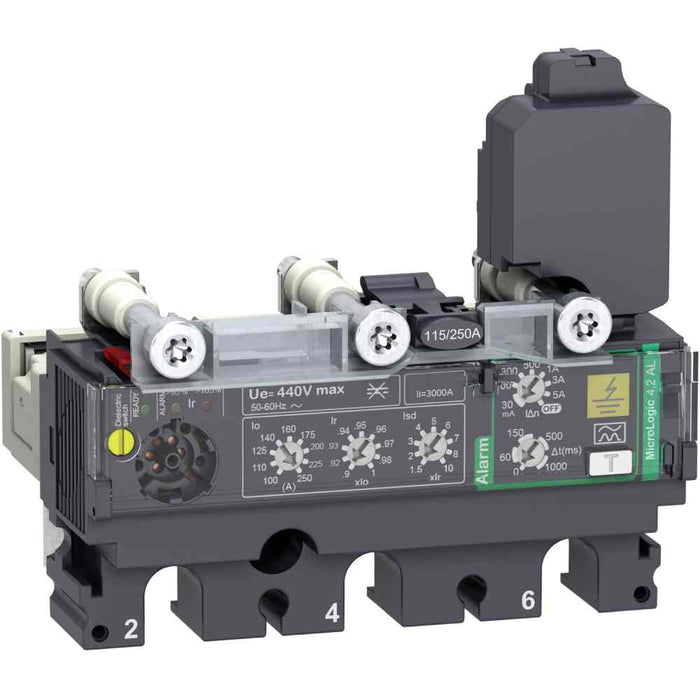

This MicroLogic 4.2 AL is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 4.2 AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
40 A
Number of poles
3
Short-circuit release function
Delayed
Overload release current setting
16…40 A
