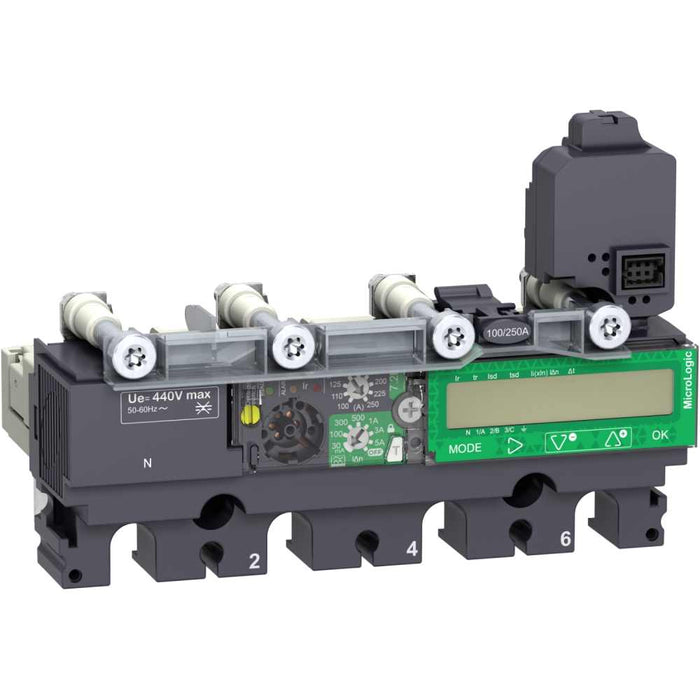

NSX100/160/250 Trip Unit 4P 40A MicroLogic Vigi 7.2E

NSX100/160/250 Trip Unit, 4 poles 40A MicroLogic Vigi 7.2E

This MicroLogic 7.2 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.2 E Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 7.2 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.2 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
