NSX100M Circuit Breaker 1P 16A 40kA/240VAC
Schneider Electric

NSX100M Circuit Breaker 1P 16A 40kA/240VAC

Ideal part number SCHC10M1TM016 Manufacturer number C10M1TM016 Barcode 3606481995728
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX100M Circuit Breaker, 1 pole 16A 40kA/240VAC

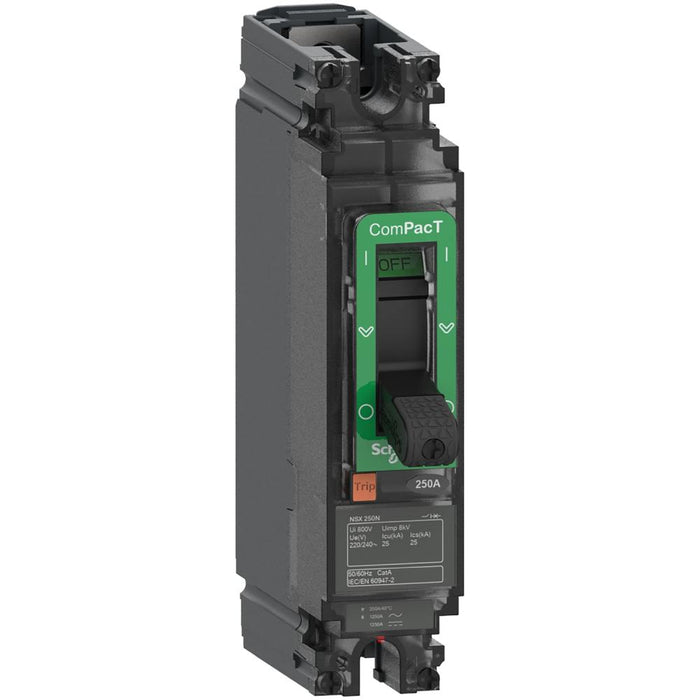

ComPacT NSX 100M is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 16A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
16 A
Number of poles
1
Overload release current setting
80…100 A
Number of auxiliary contacts as change-over contact
0
Rated voltage
250 V
Degree of protection
IP40 (Ip: IP40)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
no
Adjustment range undelayed short-circuit release
190 A
Suitable for DIN rail
no (Top hat rail mounting: no)
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
no (Top hat rail mounting optional: no)
Complete device with protection unit
yes
