NSX100S Circuit Breaker 2P 16A 70kA/415VAC
Schneider Electric

NSX100S Circuit Breaker 2P 16A 70kA/415VAC

Ideal part number SCHC10S2TM016 Manufacturer number C10S2TM016 Barcode 3606482034303
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX100S Circuit Breaker, 2 poles 16A 70kA/415VAC

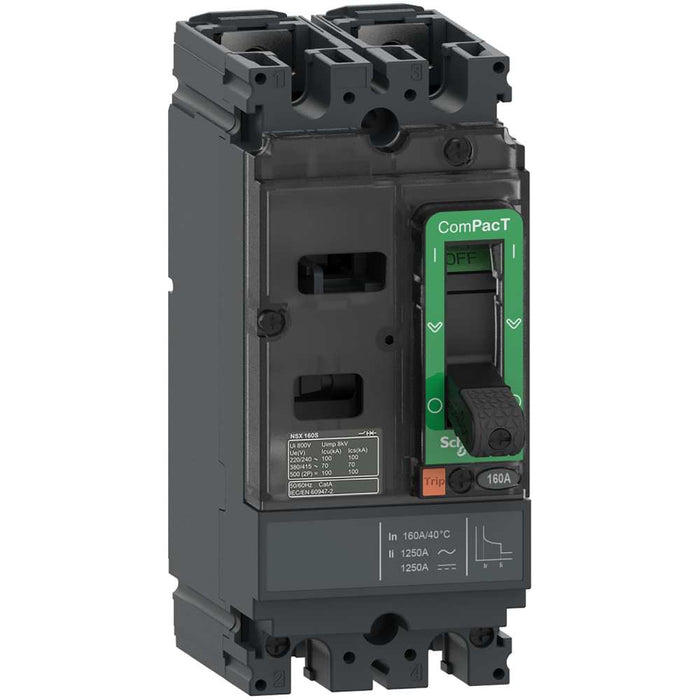

ComPacT NSX 100S is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 75kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 16A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 70mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
16 A
Number of poles
2
Overload release current setting
80…100 A
Number of auxiliary contacts as change-over contact
0
Rated voltage
690 V
Degree of protection
IP40 (Ip: IP40)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
no
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70 kA
Adjustment range undelayed short-circuit release
190 A
Suitable for DIN rail
no (Top hat rail mounting: no)
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
no (Top hat rail mounting optional: no)
Complete device with protection unit
yes
