NSX100S Circuit Breaker 2P 50A 70kA/415VAC

NSX100S Circuit Breaker 2P 50A 70kA/415VAC

by Schneider Electric
Ideal Part Number SCHC10S2TM050 Manufacturer Number C10S2TM050 Barcode 3606482034358

Product Details

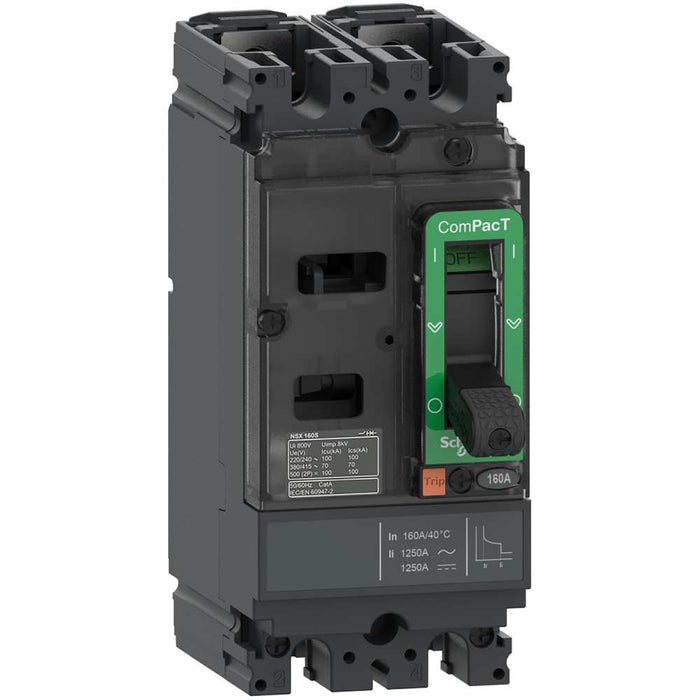

NSX100S Circuit Breaker, 2 poles 50A 70kA/415VAC

ComPacT NSX 100S is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 75kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 50A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 70mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
50
Number of poles
2
Overload release current setting
80…100
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
Degree of protection (IP)
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
no
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
Adjustment range undelayed short-circuit release
500
Suitable for DIN rail (top hat rail) mounting
no
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
no
Complete device with protection unit
yes
Rated permanent current Iu (unit)
A
Overload release current setting (unit)
A
Rated voltage (unit)
V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (unit)
kA
Adjustment range undelayed short-circuit release (unit)
A
