NSXm 160F Circuit Breaker 3P 125A 36kA/415VAC Lugs
Schneider Electric

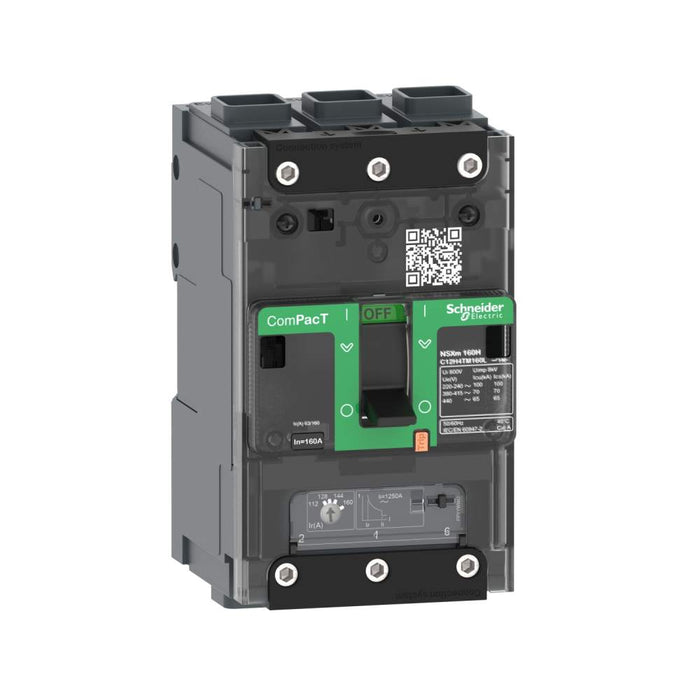

NSXm 160F Circuit Breaker 3P 125A 36kA/415VAC Lugs

Ideal part number SCHC12F3TM125L Manufacturer number C12F3TM125L Barcode 3606481990648
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSXm 160F Circuit Breaker, 3 poles, 125A 36kA/415VAC Lugs

It is a ComPacT NSXm molded case circuit breaker, 125A, 36kA at 415VAC, for all LV standard applications. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. ComPacT NSXm is one of the smallest MCCB on the market, 81mm (W) x 137mm (H) x 80mm (D). This is a 3 poles version with an embedded thermal-magnetic trip unit. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125 A
Number of poles
3
Overload release current setting
87.5…125 A
Number of auxiliary contacts as change-over contact
0
Rated voltage
690 V
Degree of protection
IP40 (Ip: IP40)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
yes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36 kA
Adjustment range undelayed short-circuit release
1250 A
Suitable for DIN rail
yes (Top hat rail mounting: yes)
Integrated earth fault protection
no
Motor drive optional
no
Device construction
Built-in device fixed built-in technique
DIN rail
no (Top hat rail mounting optional: no)
Complete device with protection unit
yes
