NSX160/250 Trip Unit 3P 160A MicroLogic 2.2G
Schneider Electric

NSX160/250 Trip Unit 3P 160A MicroLogic 2.2G

Ideal part number SCHC1632G160 Manufacturer number C1632G160 Barcode 3606482000605
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

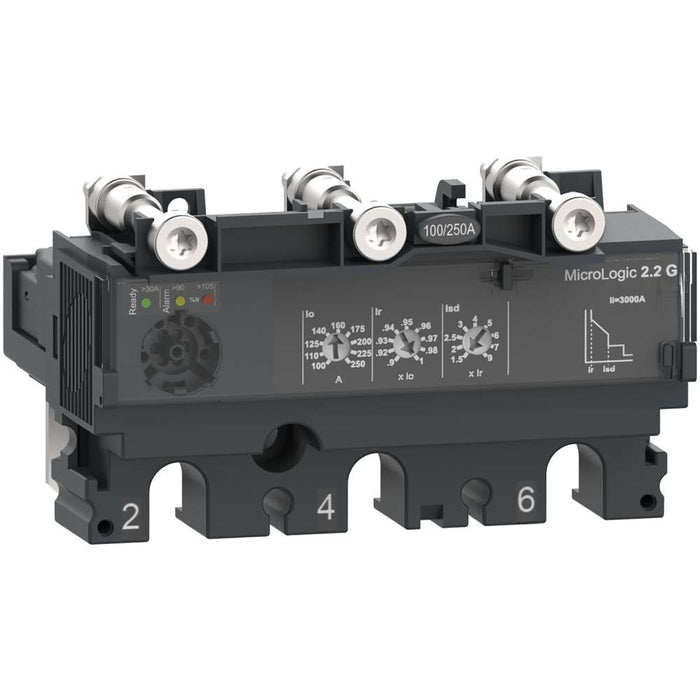

NSX160/250 Trip Unit, 3 poles 160A, MicroLogic 2.2G

This MicroLogic 2.2 G is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for generator protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 G indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
160 A
Number of poles
3
Short-circuit release function
Delayed
Overload release current setting
63…160 A
